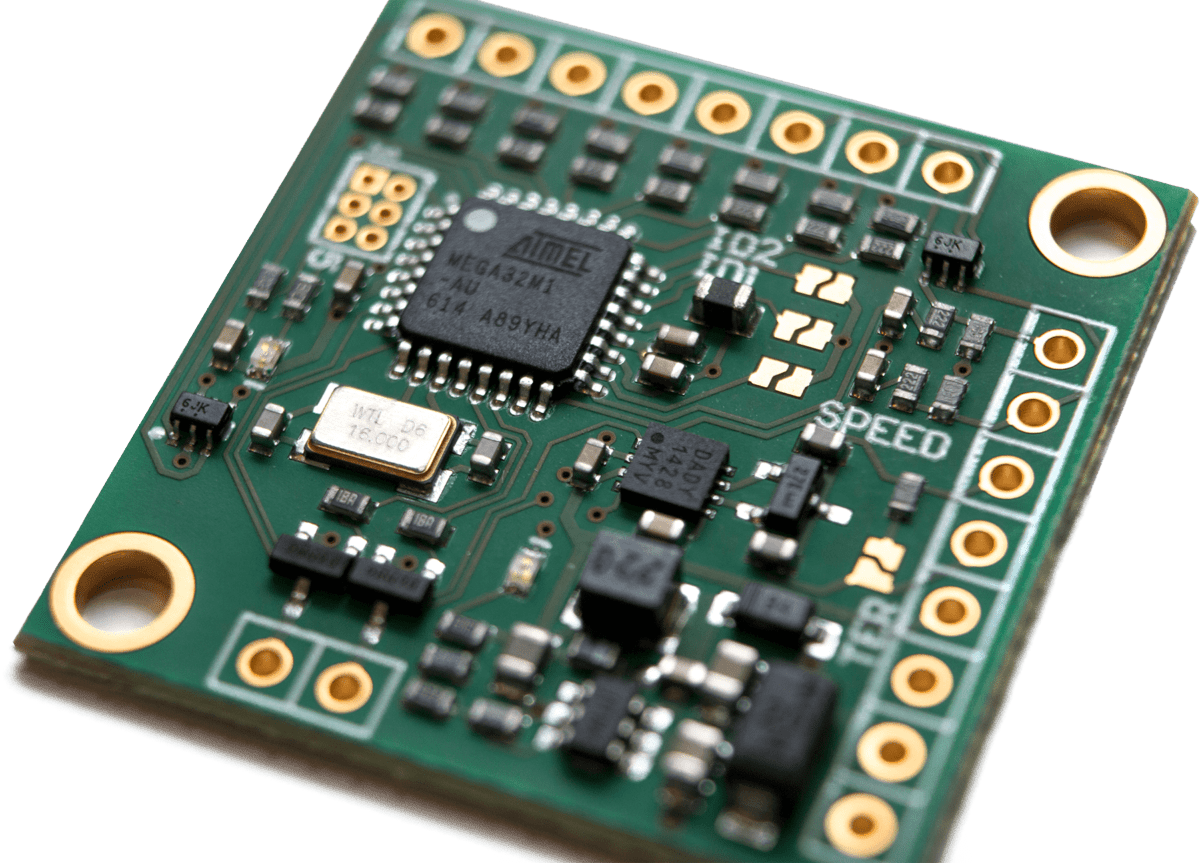

A CAN switch board is a tiny device to allow easy transfer of up to 8 switch states and two analog signals over the CAN bus. In addition to this, the device has 2 LED outputs built-in that can be activated with a CAN bus message. The main purpose of this board is to build custom steering wheel panels containing buttons, rotary switches and indicators.
Key features
CAN BUS 2.0B
500 or 1000kbps, user selectable
Different CAN ID and CAN frame structures can be selected,
Only 25x25mm in size,
8 low switch button inputs,
2 analog inputs / rotary switch inputs, 0-5V, 10bits
2 outputs for LED
6-20V power supply
+5V output for powering rotary switches or potentiometers
