ADU

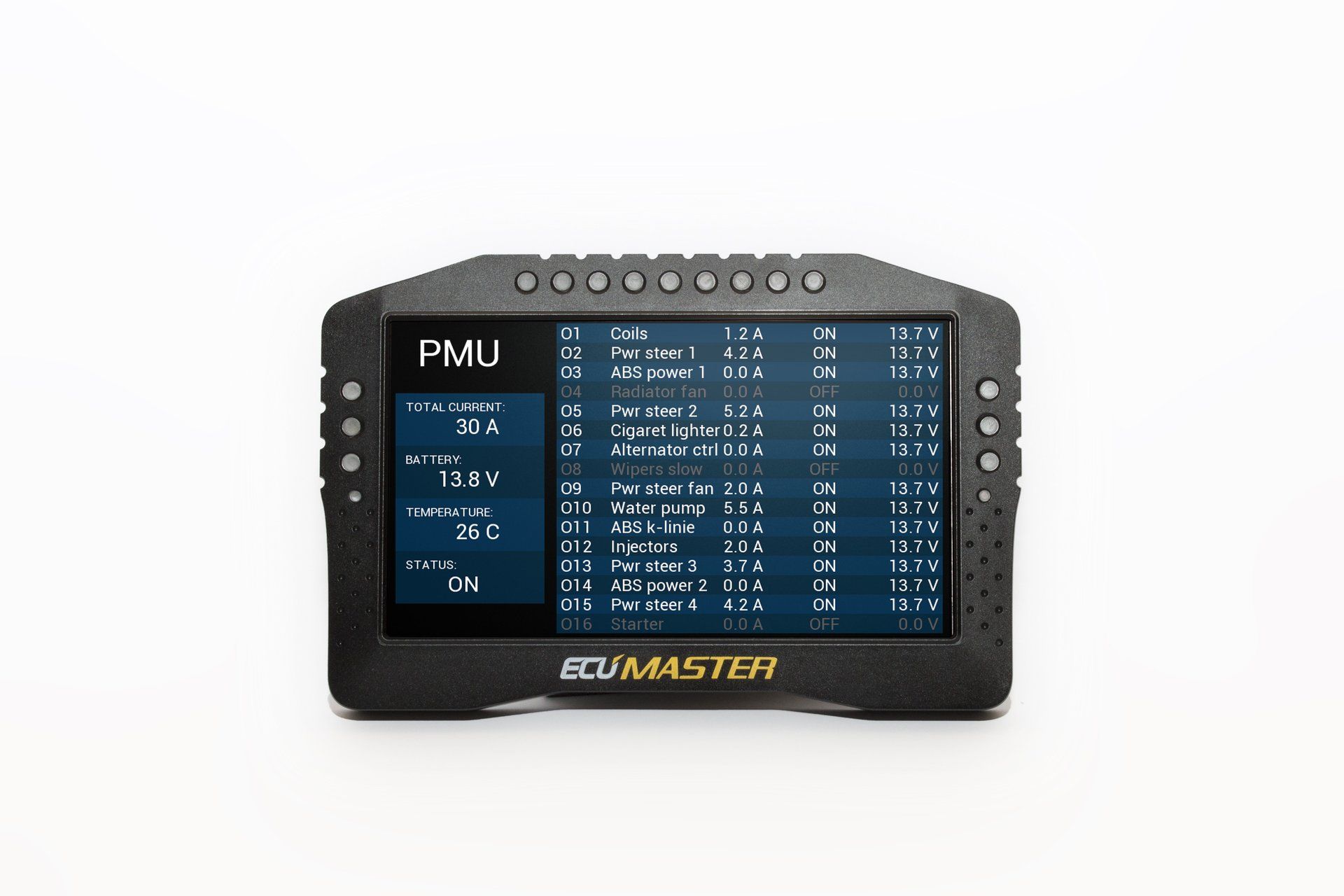

We are proud to announce the new ECUMASTER Racing Dash family of products. We designed the ADU5 and ADU7 in response to market demand for a cost-effective dash display with logging capabilities. Our specific goal was to create a fully customizable, feature-rich, quality solution for competitive drivers. We consulted professional drivers and race engineers and designed the ADU to exceed their requirements.

Above all, the ADU is designed to display all critical information in an easy to read manner, along with a comprehensive strategy for displaying alarms.

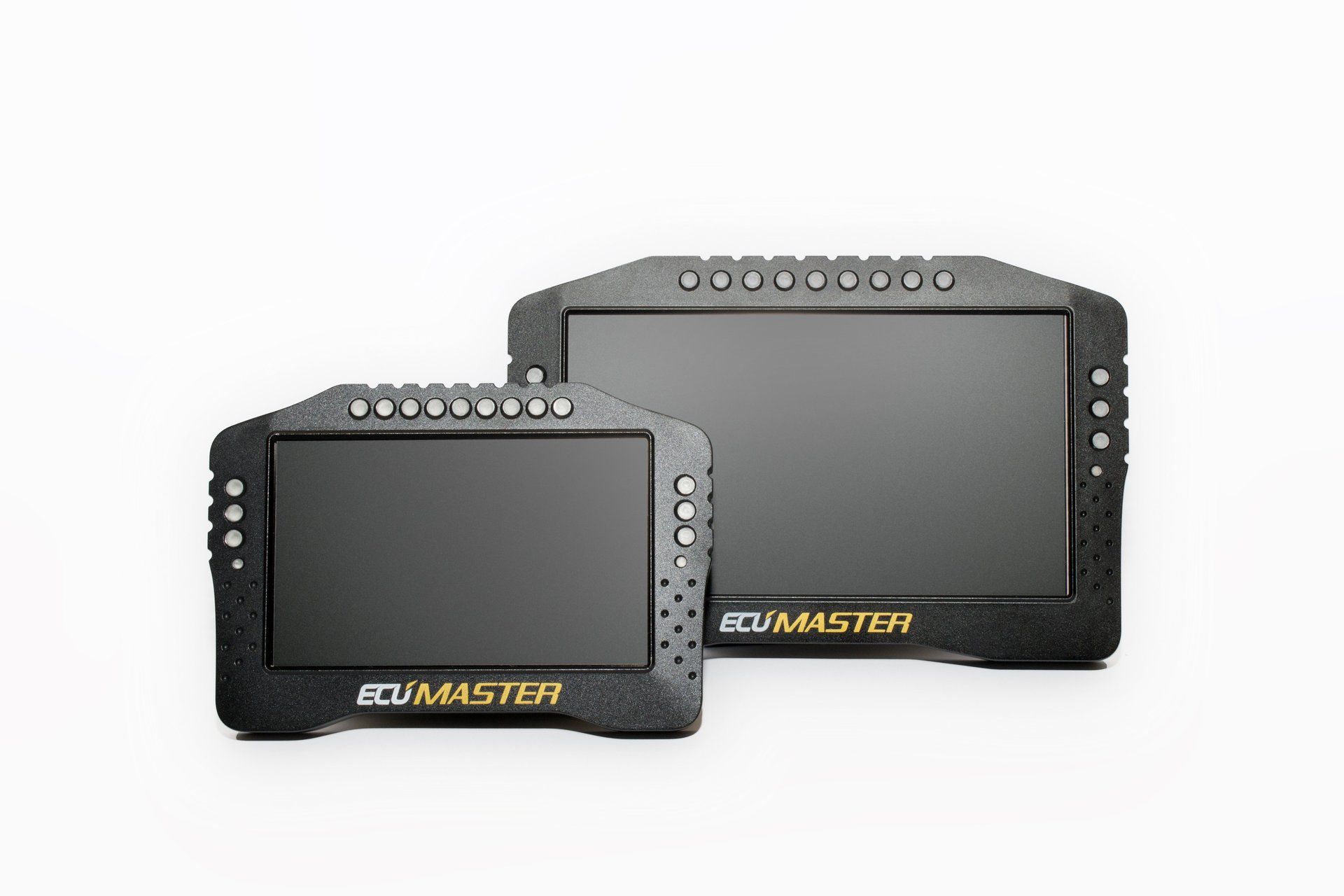

Our Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.

The ADU is also equipped with 15 ultra-bright RGB LEDs which can be used as an advanced gear-dependent shift light and can be modified by user-defined logic (for alarms, low fuel level, etc.).
Using IR beacons or a GPS system, the dash turns into a powerful lap timer with a predictive timing function. By selecting the Qualification page, you enable a “Qualification Mode” which uses advanced predictive lap timing based on an automatically updated “best” reference lap.

User configurable timers can be adjusted for additional functionality (pit stop timer, etc.). The ADU also supports thermal cameras for monitoring brake discs or tyre temperatures (up to 16 points per tyre).
Communication with other devices in the car is provided via two built-in, independent CAN-BUS communication ports. CAN templates are provided for most popular ECUs, and are fully configurable, allowing you to connect our hardware to virtually any engine management system.
To ensure that all features work seamlessly, our device is based on a 32-bit automotive controller paired with a state of the art graphics processor. This combination provides the perfect working environment for any engineer or driver and guarantees anti-aliased, high-quality graphics at 50 frames per second.
For further data analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz.
All of these “Must Have” features and more are housed in a rugged, specially CNC machined, black anodized enclosure.

Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, CAN data streams).

Full specification
Temperature range                                                   AECQ100 GRADE1 (-40 to +85˚C)
Reverse battery protection                                       Yes, internal
Operating voltage                                                     6-22V, immunity to transients according to ISO 7637
Enclosure                                                                 IP 60, custom CNC machined aluminum
Connectors                                                               1 x 35 positions, AMP Automotive connector
PC communication                                                   CAN BUS – Ecumaster interface, Peak or Kvaser
Display Type                                                             TFT 800×600
Brightness of display                                                5″ – 600 cd/m2, 7″ – 1000 cd/m2

INPUTS / OUTPUTS
Analogue inputs                                                       8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor.                                                                                                   Al analog inputs can be used as a switches

Digital inputs                                                            8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled                                                                                       4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds,                                                                                           turbocharger shaft speed. All digital inputs can be used as switches

Outputs                                                                     2 low side outputs (switch to ground), up to 2A,
                                                                                 1 analogue output (0-5V) 10 bits
                                                                                 Monitored 5V output for powering external sensors
COMMUNICATION
CAN Interface                                                           2 x CAN2.0 A/B, 250, 500, 1000 Kbps
CAN streams                                                            User-defined, multiple pre-configured
Serial communication RS232 Rx/Tx,                        AiM protocols, Ecumaster, Hondata Kpro, Autronic
USB                                                                          Used for logging to external USB memory

OTHERS
Light Emitting Diodes                                                15 ultra bright RGB LEDs
Accelerometer/gyroscope                                         3D accelerometer + 3D gyroscope for the analysis of vehicle dynamics
Real-time clock                                                         Yes, battery powered
Light sensor                                                              Yes, for automatic correction of brightness
Temperature sensor                                                  Yes, for monitoring device temperature
